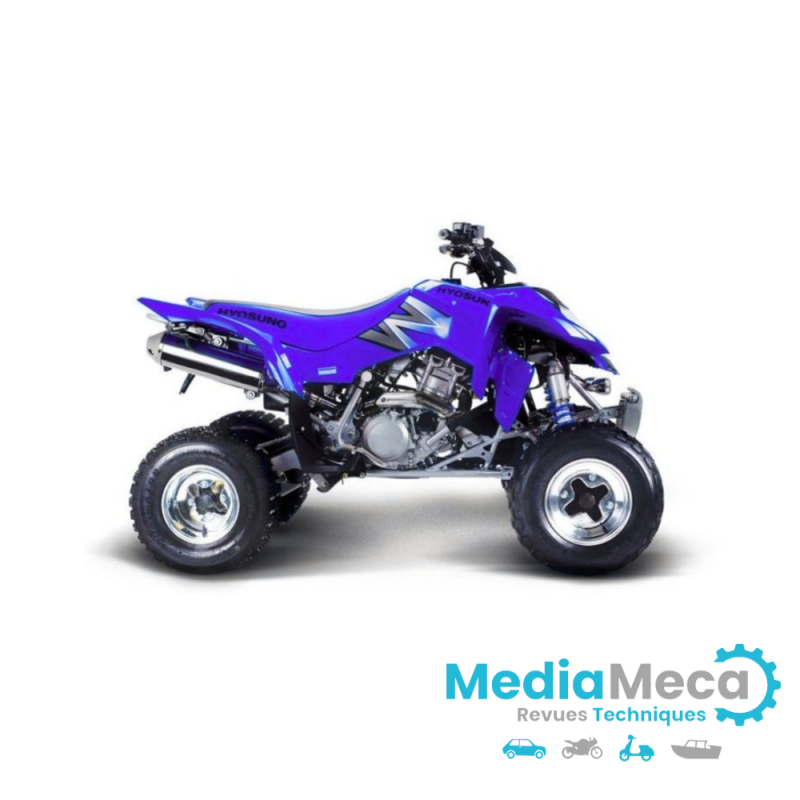

Workshop manual TE450 RAPIER

Professional technical review for HYOSUNG

MODEL:

.

.

TE450 RAPIER Type: REU01

.

.

MOTORIZATION:

• 448.8 Cm3 - Single cylinder - 4 Stroke

.

TRANSMISSION:

• 5 front + 1 rear

.

FOOD:

• BDS42 carburetor

Ultra-complete and very understandable documentation with lots of drawings.

Language: English

Manual of 261 Pages pdf

Edition date : 2007

Vintages covered : All of the type

.

CONTAINS electrical diagrams and tightening torques

COMPLETE VEHICLE DEALING

.

.

.

.

.

.

.

The technical characteristics of each product appear in the “technical sheet” tab as well as their “paper or CDROM” support.

you will find all the technical terms used in the advertisements in the “how to choose” part of the site

.

.

.

.

The web talks about it:

.

Hyosung Rapier 450. The Chinese advance continues. After low-cost motorcycles, Hyosung also aims
the four wheels. No, he hasn't decided to produce cars yet,
but the almond-eyed house aims the viewfinder in the fashionable world of Quads.
As he becomes more and more accustomed to it, Hyosung does not neglect the aesthetic impact,
presenting a quad with modern and well-made lines. Talk about the quality of the assembly
is certainly not possible given the quality of the photos but, at first glance,
the commitment to present a support that has nothing to envy of the various sacred monsters of the segment
is undeniable. The propulsion unit is a 450 cc, 4-stroke single-cylinder unit with a head
twin-shaft, 4-valve, liquid-cooled. When it comes to power, Hyosung Rapier
is approved with the limitation to 15 kw - 20 horsepower -. For those who are not satisfied,
Hyosung offers a separate kit - not approved for road use -
which gives the mono a power output of 53.2 horsepower at 7,500 rpm. Transmission is delegated to
a 5-speed manual gearbox - more rear - while the drive is rear only.
The braking system is integrated and consists of a pair of 180mm discs at the front with a caliper
single piston floating. With a dry weight of 172 kg, Hyosung Rapier is available in red and black
race at a price of 6,480 euros.

After low-cost motorcycles, Hyosung decided to produce four-wheeled vehicles: not cars,
we're talking about the hip world of quads. As usual, Hyosung wants to offer a good product and
This new quad has a modern and well-designed design. The powertrain is shown
by a 450 cc, 4-valve, liquid-cooled, 4-stroke engine. In terms of powertrain,
Hyosung Rapier can develop 20 HP - 15 kW - 20 horsepower -. Rear wheel drive and manual transmission
five speeds. The braking system consists of a 180 mm disc at the front.
The Rapier Hyosung weighs 172 kg, it is available in red and black versions and
costs 6,480 euros on the Italian market.
