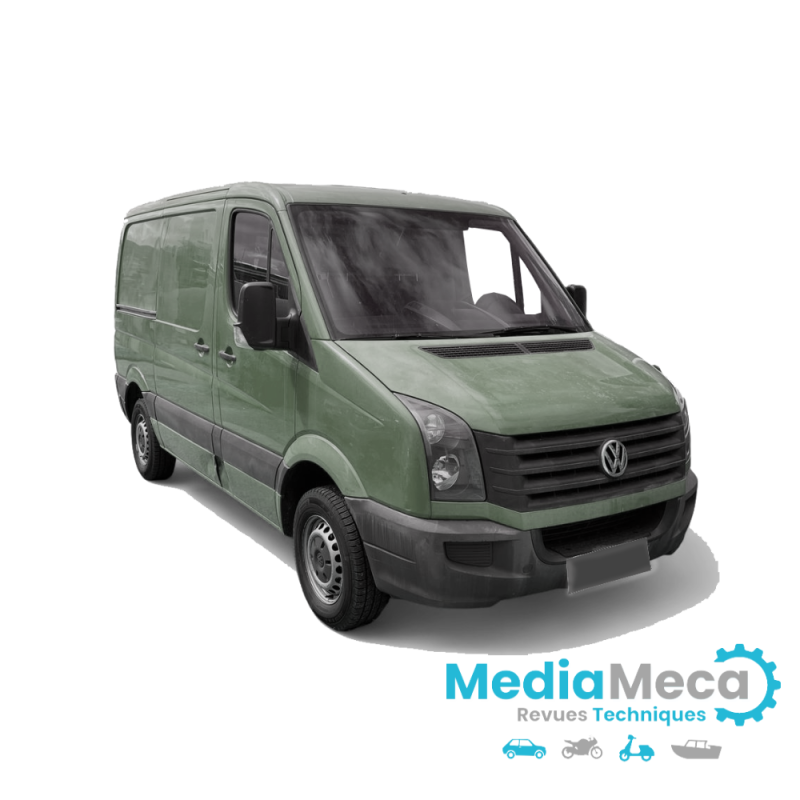

Workshop manual CRAFTER 2006

Professional technical review for Volkswagen

MODEL:

.

.

CRAFTER Types: 2EC1 +2EC2 + 2EKE1 + 2EKE2 + 2EKZ +2FD..

.

.

ENGINE: Diesel

• 2.5 Liters - 5 Cylinders TDI - Euro 3 +4 +5
• All powers

.

BODYWORK:

• Paneled and glazed van
• Minibuses
• Cab chassis

.

TRANSMISSIONS:

• Robotic: 0B8
• Manual: 6 speed 0B7

Ultra-complete and very understandable documentation with lots of drawings.

Language: English

6208 Manual PDF pages

Bodywork manual included

Edition date : 2008

Vintages cutlery : 2006 to 2011 inclusive

.

CONTAINS electrical diagrams and tightening torques

COMPLETE VEHICLE DEALING

.

.

.

.

.

.

.

The technical characteristics of each product appear in the “technical sheet” tab as well as their “paper or CDROM” support.

you will find all the technical terms used in the advertisements in the “how to choose” part of the site

.

The web talks about it:

.

.

.

.

Volkswagen had the difficult task of replacing its LT (850,000 units sold). Mission accomplished for
German manufacturer with its Crafter, which contrasts completely with other existing models.
Its design and equipment are also highlighted.

We now know the face of the new Volkswagen Transporter. Called Crafter,
it surprises at first glance with its imposing appearance. Robustness seems to have been the line
driving style chosen by Volkswagen. This is evidenced by the four imposing bars of the grid with their
center the VW brand badge. The imposing V of the grille, which extends along two grooves
on the engine hood to frame the air inlet grille of the cabin ventilation system, is not there
not foreign either. The two optics seem to extend like a point towards the wing.
The bumper perfectly highlights the Crafter's features and provides support. Practical, the central element
of this bumper constitutes a non-slip step which can be useful when cleaning the windshield.
The sides, for their part, accentuate the dynamic appearance of the utility vehicle. The cuneiform groove adorning
the side wall emphasizes the dynamism and momentum of the Crafter. It starts in the side doors,
and widens towards the rear to end in the rear lights. The large protective strip fixed in
the lower body area passes over the prominent wheel arches and connects the bumpers
front and rear. This strip gives structure to large sheet metal surfaces and serves as protection
to the sides of the Crafter against the risk of damage. It also allows you to carry out repairs
partial: in the event of slight damage, it is not necessarily necessary to replace
a large segment of the side wall.
